Grafana - Visualizing Crypto Portfolio

Introduction

In this part of the Crypto Tracker guide, we will take what we've built using the Bitstamp API and stored in InfluxDB and visualize it using Grafana.

We will be using Grafana to create a dashboard that will display the current value of our portfolio, the value of each individual asset, and the percentage of our portfolio that each asset makes up.

Perhaps we will add a few more visualizations as we go along.

Prerequisites

Connect Grafana to InfluxDB

We have data, we have a database, and we've got an instance of Grafana running. Now we need to connect Grafana to InfluxDB. Things are starting to get exciting, so strap in, and let's go.

Step 1: Add InfluxDB as a Data Source

1. Navigate to the Grafana web interface in your browser.

   Example:

   http://10.2.1.223:3000

2. In the Grafana dashboard, navigate Home > Connections > Data sources.

3. Click on Add data source.

4. Select InfluxDB from the list of available data sources.

5. Fill in the following details:

   • Name: Give your data source a name. For example, Crypto-Influx.

   • Query Language: Select the query language you want to use. In this case, select Flux.

   • URL: Enter the URL of your InfluxDB instance. For example, http://10.2.1.185:8086.

   • Auth: Select Basic Auth.

   • Basic Auth Details:

     • User: Enter the username you set up for InfluxDB.
     • Password: Enter the password you set up for InfluxDB.

   • Influx Details:

     • Organization: Enter the organization name you set up for InfluxDB. Back in the InfluxDB setup, I used bglab.
     • Token: Enter the token you set up for InfluxDB. If you've lost your token, you can generate a new one in InfluxDB fairly easily. If you've been following along so far, you'll also have your token stored in your .env file.
   tip

   If you've done any digging into InfluxDB versions, you may have found that Influx is moving to V3 and we've been working in V2 thus far. One advantage of V3 is that querying using native SQL is supported and I'm just skilled enough in SQL to be disappointed that if we are self-hosting, we aren't yet able to run V3 and use SQL. If you are feeling adventurous, you can try out the InfluxDB V3 via the cloud offering.

6. Click Save & Test. If everything is set up correctly, you should see a green notification that says Data source is working.

   Too Many Buckets?

   You may see more buckets than you expect, but that's okay. I am using the same InfluxDB instance for multiple projects so a few extra buckets are expected.

Create a Dashboard with a Simple Stat Panel

We are starting out with baby steps here to get our feet wet with working with, and representing data in Grafana. We will create a simple stat panel that will display the current value of our portfolio.

This will not be without its complexity as we will need to write a query to sum the value of all our assets. In a later version of this app, I will add the ability to add and remove assets from the portfolio using a web interface, but for now, we will keep it simple.

Step 1: Create a New Dashboard

1. In the Grafana dashboard, navigate to Home > Dashboards.

2. Click on New Dashboard.

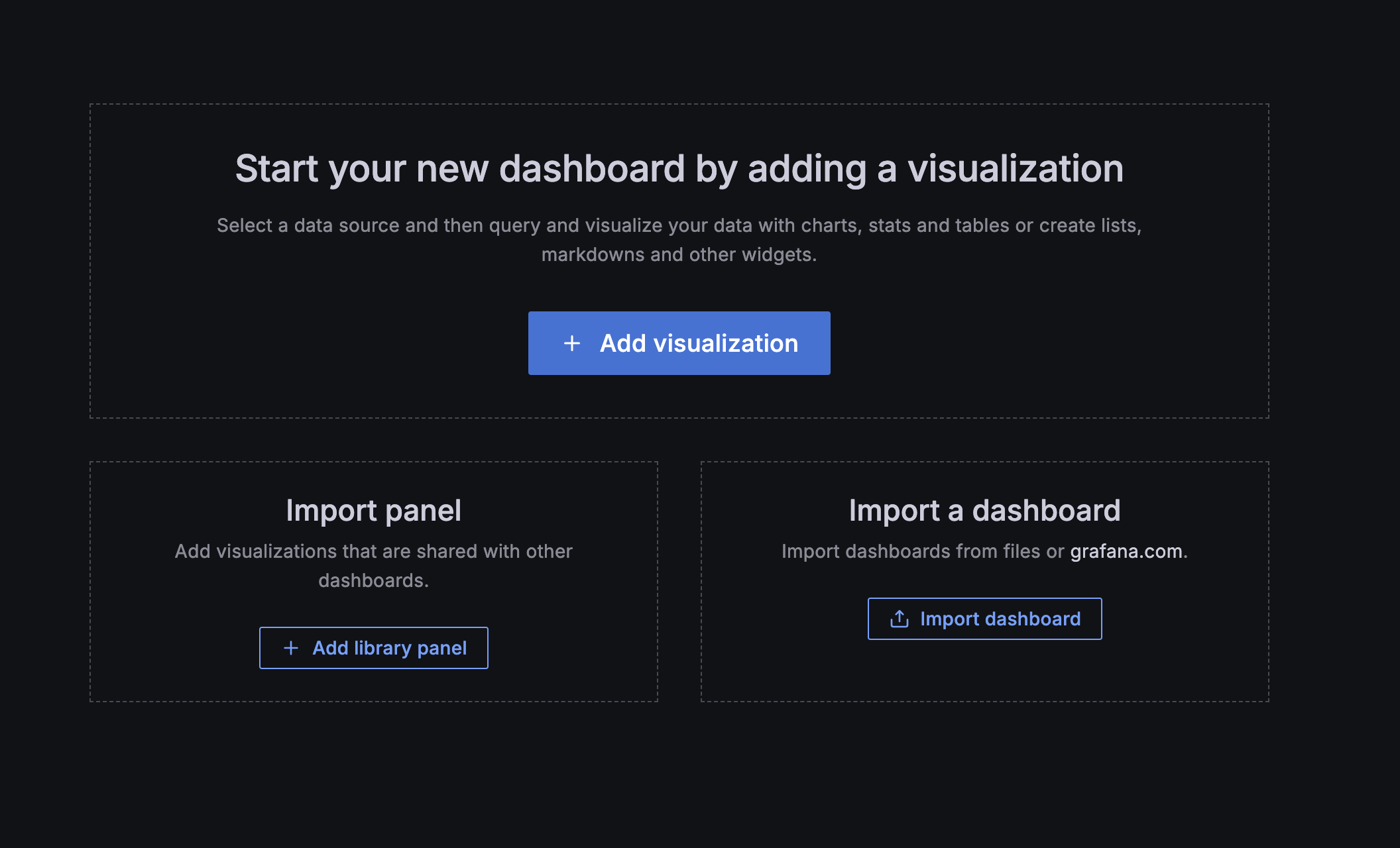

3. Click on Add visualization.

   •

4. Select your data source from the list of available data sources. In this case, select Crypto-Influx.

Step 2: Panel Orientation and Configuration

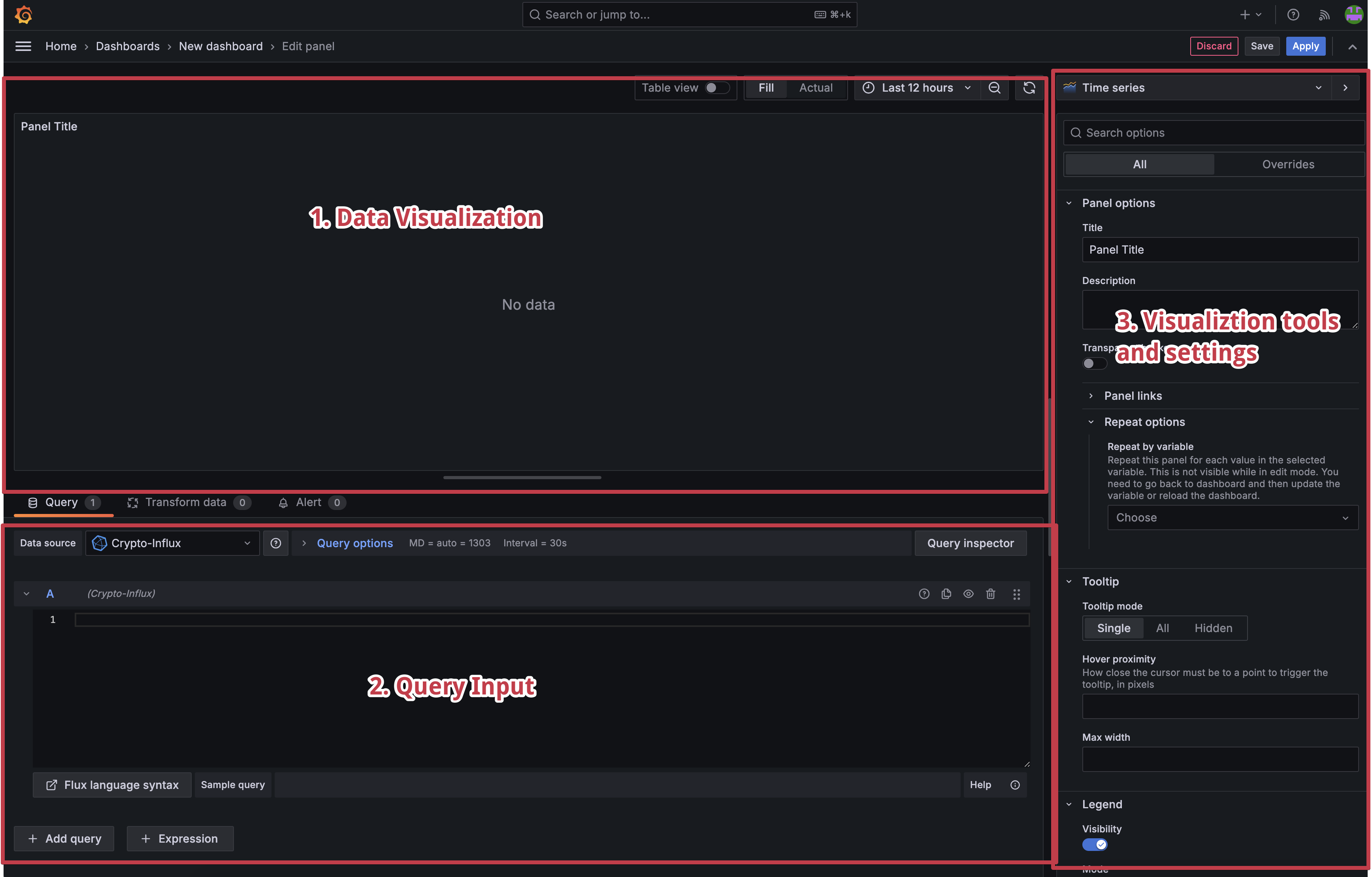

There are three main sections to the panel configuration:

• Visualization Section: This is where you can view how the data is displayed.
• Query Editor: This is where we will write our Flux queries to pull data from InfluxDB.
• Panel Editor: This is where we will configure the panel itself.

Step 3 - Manual Input For Crypto Holdings using Grafana Variables

Since we are not yet at the point where we can add and remove assets from our portfolio using a web interface, we will manually input the value of our assets using Grafana variables.

1. Navigate in Grafana to your Crypto Tracker dashboard and click the gear icon (⚙️) to edit the dashboard.

2. Click on the Variables tab.

3. Click on New Variable.

4. We will all for the variable to be edited manually directly on the dashboard. Fill in the following details:

   • Select variable type: Text Box
   • Name: xrp_holding
   • Label: XRP Holdings
   • Description: The total number of XRP currently held in the portfolio across all wallets and exchanges
   • Show on dashboard: Label & Value
   • Default value: 7000
   Default Value

   The default value can be anything your like. It can be your exact current holdings or a placeholder value. I've used 7000 as a placeholder.

5. Click Apply and then Save dashboard.

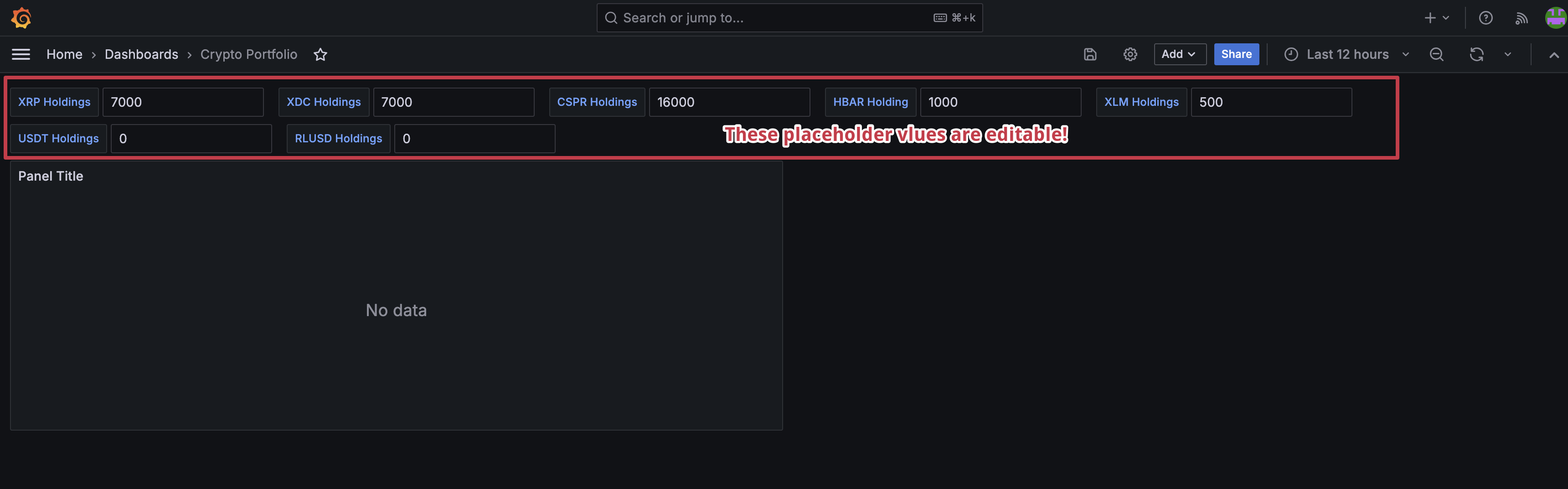

6 Repeat the process for each asset you hold (that you've stored in InfluxDB). Once complete, you should see something like this:

Step 4 - Write a Query to Sum the Value of All Assets

1. Click on the Add Query button in the Query Editor.

2. Add in the following query and then expand the details below to get an in-depth explanation of what we are doing:

   import "array"

    // Fetch the latest price for all tracked assets
   prices = from(bucket: "crypto_portfolio")
   |> range(start: -5m)
   |> filter(fn: (r) => r._measurement == "crypto_data")
   |> filter(fn: (r) => r._field == "price")
   |> group(columns: ["currency_pair"])
   |> sort(columns: ["_time"], desc: true)
   |> limit(n: 1)

    // Define holdings as a separate table
   holdings = array.from(rows: [
   {currency_pair: "xrpusd", holdings: ${xrp_holdings}},
   {currency_pair: "xlmusd", holdings: ${xlm_holdings}},
   {currency_pair: "xdcusd", holdings: ${xdc_holdings}},
   {currency_pair: "hbarusd", holdings: ${hbar_holdings}},
   {currency_pair: "csprusd", holdings: ${cspr_holdings}}
   ])

   // Join prices with holdings based on currency_pair
   portfolio = join(
   tables: {prices: prices, holdings: holdings},
   on: ["currency_pair"]
   )
   |> map(fn: (r) => ({
      r with
      usd_value: r._value * float(v: r.holdings)  // Cast holdings to float
   }))

   // Sum up the USD portfolio value
   portfolio
   |> group()
   |> sum(column: "usd_value")
   Query Explanation

   Let's get a precise and detailed understanding of what we are doing in this query.

3. Click Apply and then Save dashboard.

Step 5 - Create a Stat Panel and Configure the Output

Ok, we've got our query and if you run it, you might not see anything yet. That's because we haven't configured the panel to display the output of the query.

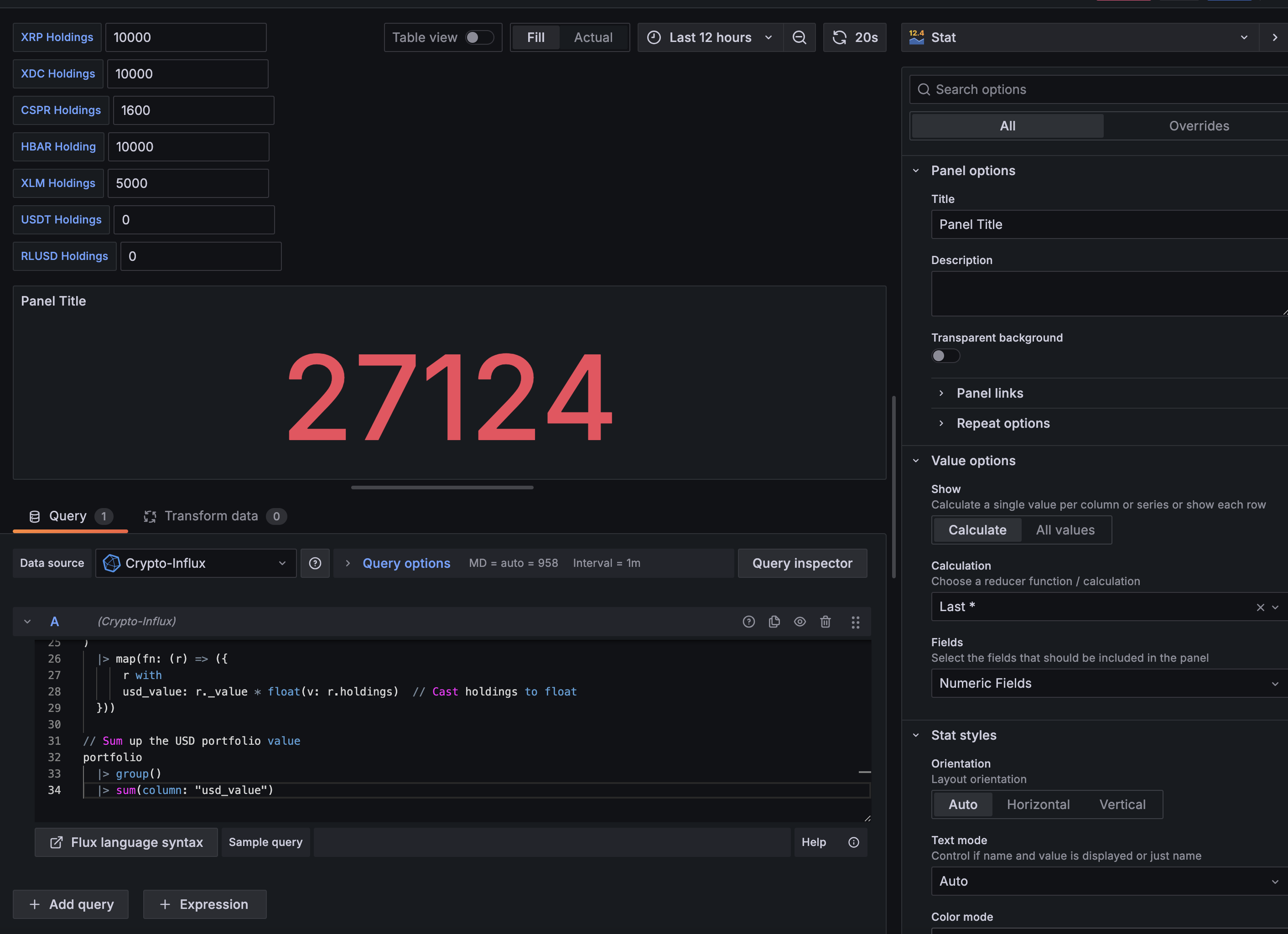

1. First, to ensure we are getting the correct output. It's nice to see that we are getting something resembling the correct output. Click on the Visualization tab and select Stat. You should see your portfolio value displayed in the panel unformatted.



   A pretty boring panel, but it's a start.

2. Let's add a few details to the Panel and give it a bit of life. First enter something for Panel Title. Give it a name like, Portfolio Value. You can also add a Description if you like.

3. Scroll down to the Stat styles section. Here we are going change the Text Mode to value and name. This will display the value of the portfolio and the name of the panel. This seems to uglify the panel a bit but there is a very specific reason for this. See notes below.

   note

   If you poke around the options in the Stat panel, you may find that you can, in fact, display your stat as a currency type. Unfortunately, Grafana is opinionated about how it displays currency values and if your value is above 3 digits, it will display in abbreviated format, thus converting $10,300 to $10.3k. This is not what we want. We want to see the full value of our portfolio. Selecting value and name will conditionally render a few further options that allow us to prepend a custom value to the output. We will use this to prepend a $ to our value.

4. Before we affix the $ to the stat value we need to handle a few other things. Notice that when we select value and name we've effectively brought in our raw value from InfluxDB -- we now see a usd_value displayed as the name value. Not great. Scroll down to the Standard Options section and enter Portfolio Value in USD in the Display Name field. This will replace the usd_value with Portfolio Value in USD. Looks better already.

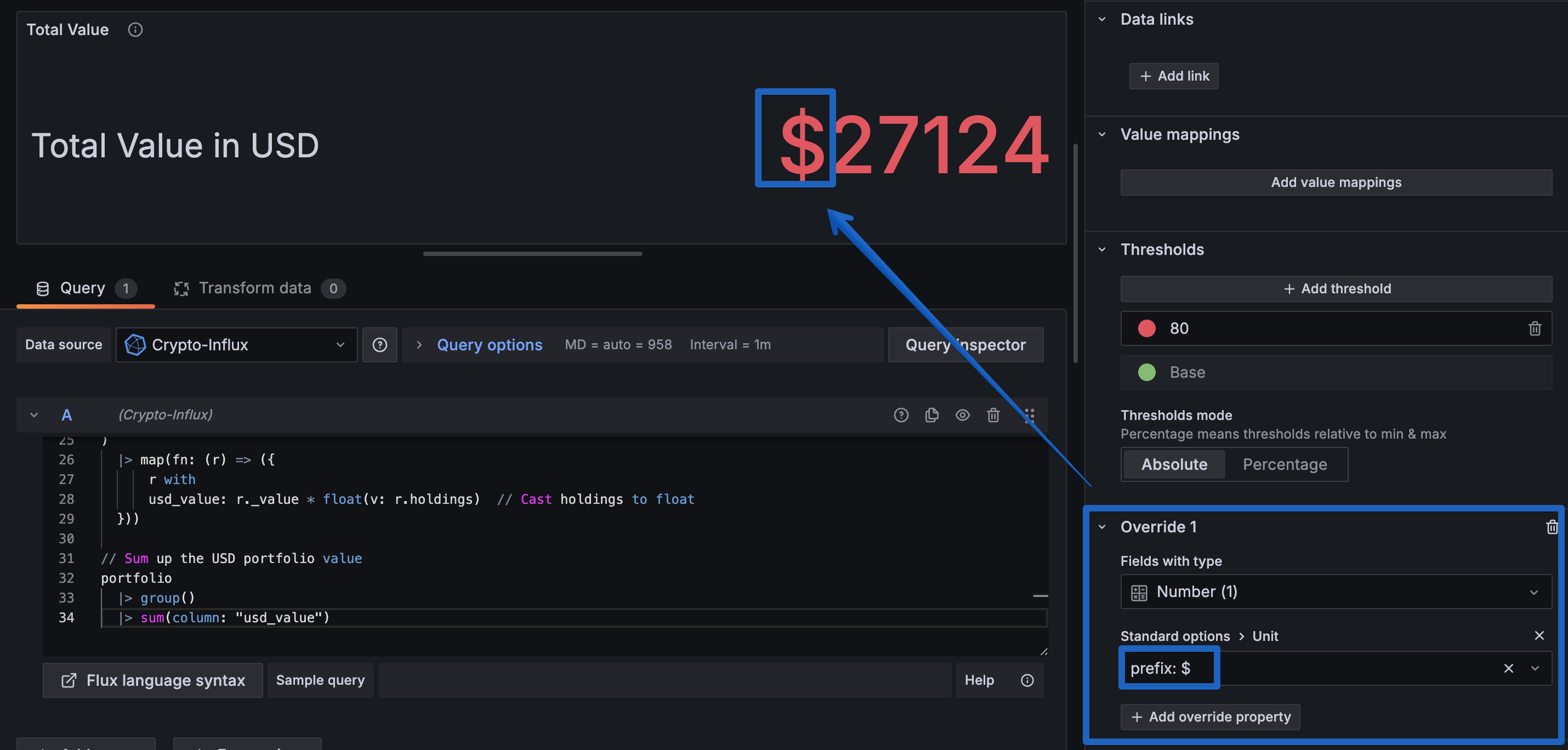

5. Add the $ to the Stat Value: Scroll to the bottom of the panel configuration and click on Add Field Override. Select Field with type as the option and then click Add override property.

6. In the list that populates for override properties, select Standard Options > Unit. Enter a custom value as a prefix in the field - prefix: $. You should now see a $ prepended to your portfolio value.



Great, we have something resembling a dollar value for our portflio. A few more minor adjustments and we will have it looking just as we need.

7. Scroll back up to the Standard Options section and look for the Decimals field and enter 2. This will round our value to 2 decimal places to get our ¢ value. (this is optional, but makes ... cents to me).

8. Finally, our crypto haul is showing in red. This is due to the default threshold value setting being 80 -- so I guess if you were building a dashboard to monitor resource usage of a server, over 80 would be a bad thing. In our case, we are going to be (hopefully) displaying our profits which is typically shown in green. In the thresholds section, simply click the trash icon beside the 80 value to remove it.

   tip

   You could set a threshold value to change colour based on what your original investments were. This may be something I will add, but for now, I'm happy to see green.

9. Click Apply and then Save dashboard.

You should now have a nice panel showing the current value of your portfolio. We aren't done yet, as we want some more information on all our assets.

Inaccurate Portfolio Value for first few minutes?

There is a slight delay of the information fed from InfluxDB to Grafana with our current setup. This is due to the way we are querying the data. We will look at optimizing this in a future update. As things stand now, when the dashboard is first loaded, you may not see some of the assets being calculated in the portfolio value.

A refresh of the page won't fix this as the most probable reason is that that InfluxDB is feeding our Dashboard the latest info from the Bitstamp Websockets API which updates and populates based on the latest trades. This is ok, but if we have some less popular assets, they may not have been traded in the last 5 minutes. This is something we will address in a future update by changing the Flux query to request the OHLC / historical data from our crypto_history bucket until new trade data is available.

Create a Panel to Display Individual Asset Values and Percentages

We've got our portfolio value displayed, but we want to see the value of each individual asset and the percentage of our portfolio that each asset makes up.

Step 1: Create a New Panel

1. Click on the Add Visualization button in the dashboard.

2. In the Flux Query
